High-Performance Winding Wire Rope on a Drum for Industrial Lifting & Hoisting
In demanding industrial lifting, hoisting, and towing applications, the reliability of your system hinges on the integrity of its core component: the wire rope and its storage. Our engineered solution for winding wire rope on a drum represents the pinnacle of safety, durability, and operational efficiency. Designed for seamless integration with cranes, winches, elevators, and offshore equipment, this pre-spooled assembly ensures optimal rope management, minimizing wear and maximizing service life under extreme loads and conditions.
Product Overview

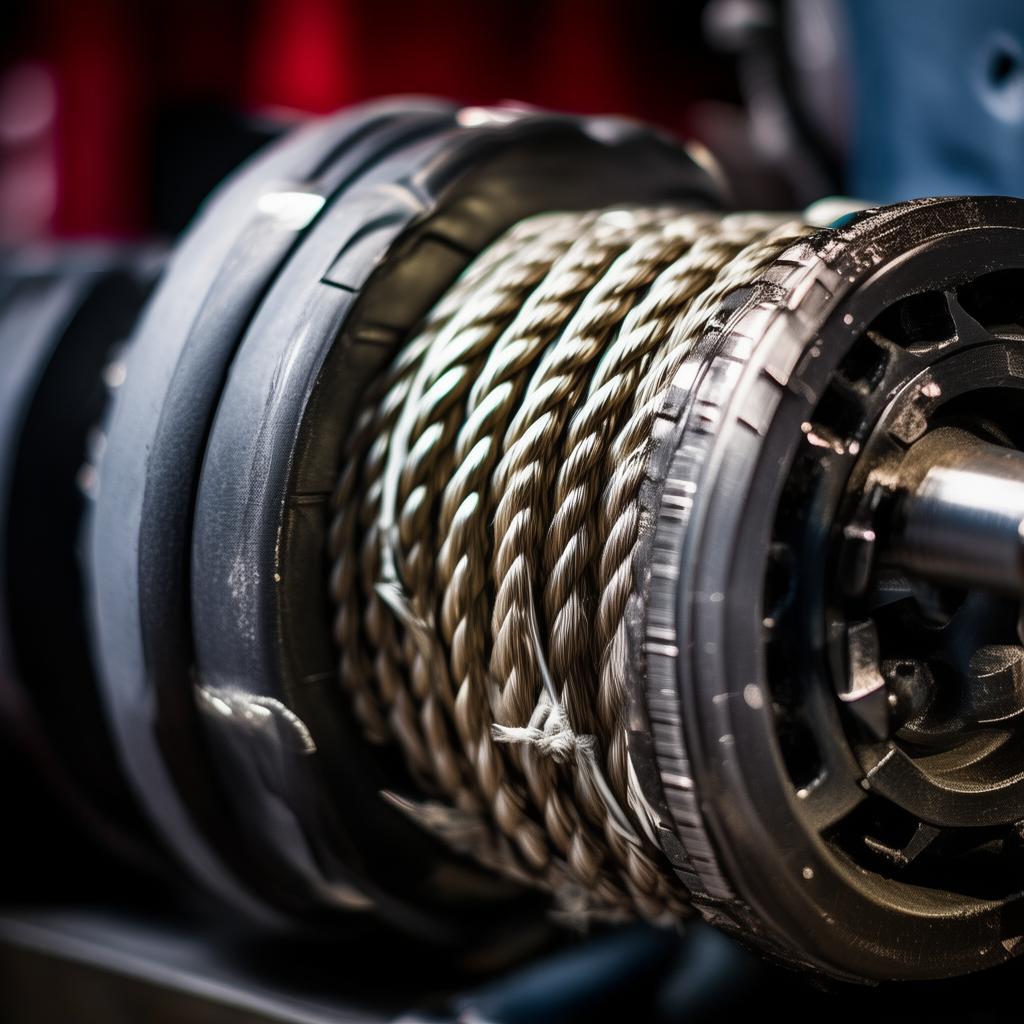

Our winding wire rope on a drum is a complete, ready-to-install assembly featuring a high-grade steel wire rope precisely wound onto a robust, engineered drum. This configuration is not merely about storage; it's a critical engineered system that controls the rope's bend radius, layering, and tension during operation. We provide custom-configured solutions where the rope classification (e.g., 6x36 IWRC, 8x19S), drum dimensions (flange diameter, barrel width), and winding pattern are meticulously matched to your equipment's specifications and duty cycle, from standard factory use to severe offshore and mining environments.
Key Features
- Precision Engineered Spooling: Controlled, uniform winding under optimal tension prevents crushing, birdcaging, and premature fatigue, ensuring smooth payout and retrieval.
- Component Synergy: The wire rope and drum are selected as a matched pair. Drum groove profiles (if applicable) and barrel diameter are calculated to maintain the rope's minimum bend radius, preserving its structural integrity.
- Superior Rope Constructions: Available in a range of constructions including rotation-resistant, compacted strand, and plastic-coated varieties to resist abrasion, corrosion, and fatigue.
- Rigorous Pre-Delivery Testing: Each assembly undergoes load testing and inspection to verify performance against stated specifications before shipment.
- Global Compliance: Manufactured to meet or exceed international standards such as ISO, DIN, and ASTM, ensuring worldwide applicability and safety compliance.
Technical Specifications
| Parameter | Specification Range & Details |
|---|---|
| Wire Rope Diameter | 8 mm to 60 mm (5/16" to 2-3/8") |
| Common Rope Constructions | 6x36 WS IWRC, 6x19S IWRC, 8x19S IWRC, 35x7 Rotation Resistant |
| Drum Core Material | High-Tensile Carbon Steel (painted, galvanized, or powder-coated) |
| Drum Barrel Diameter | Customized to ensure >18x rope diameter (minimum bend ratio) |
| Flange Design | Standard or reinforced flanges; smooth or grooved barrel |
| Rope Length Capacity | Up to several thousand meters, based on drum dimensions and rope size |
| Minimum Breaking Force (MBF) | According to rope grade (e.g., 1770 N/mm², 1960 N/mm²) |
| Lubrication | Factory-lubricated; optional heavy-duty or corrosion-inhibiting grease |
| End Fittings | Swaged sockets, spelter sockets, or pressed ferrules as required |
Application Scenarios
The process of correctly winding wire rope on a drum is fundamental to safety and performance across industries. Our assemblies are specified for:
- Overhead Cranes & Gantries: Main hoist, auxiliary hoist, and trolley travel systems in manufacturing, steel mills, and warehouses.
- Construction & Tower Cranes: Hoisting mechanisms where reliable, multi-layer spooling is critical at height.
- Marine & Offshore: Winches for mooring, towing, anchor handling, and offshore crane operations in corrosive saltwater environments.
- Mining & Quarrying: Draglines, shaft hoists, and material handling equipment subject to extreme loads and abrasion.
- Material Handling: Elevators, skip hoists, and automated retrieval systems where precise movement is paramount.
Advantages
Choosing a pre-assembled unit for winding wire rope on a drum delivers significant operational and economic benefits over field-spooling:
- Extended Service Life: Correct initial winding prevents the primary causes of wire rope failure, reducing replacement frequency and downtime.
- Enhanced Safety: Eliminates the hazards associated with improper field spooling, such as loose wraps, jumps, and snap-back, protecting personnel and equipment.
- Optimized Performance: Ensures consistent fleet angle, reduces power consumption on the drive motor, and enables smoother, more predictable operation.
- Reduced Total Cost of Ownership: Lower maintenance costs, fewer failures, and longer intervals between rope changes contribute to a superior ROI.
- Guaranteed Compatibility: The drum and rope are supplied as a certified, matched system, removing guesswork and ensuring OEM-level fit and function.
Why Choose Us
As specialists in engineered wire rope solutions, we go beyond commodity supply to become your technical partner.
- Application Engineering Support: Our technical team reviews your equipment specs and operational demands to recommend the optimal assembly configuration.
- Full Customization Capability: We tailor every aspect—rope type, drum dimensions, flange design, and finishing—to your exact blueprint or operational need.
- Global Logistics Network: Strategically located partners and warehouses enable reliable, timely delivery of heavy assemblies to job sites worldwide.
- Quality Assurance from Mill to Drum: We control the supply chain, sourcing rope from certified mills and fabricating drums to precise tolerances, with full traceability.
- Proactive After-Sales Service: We provide installation guidance, maintenance recommendations, and are available for technical consultation throughout the product lifecycle.
FAQ
Q: Can you provide a complete assembly based on our existing drum dimensions?
A: Absolutely. Providing detailed drum dimensions (barrel diameter, width, flange diameter, bore size) and your operational parameters allows us to calculate and supply the perfect wire rope length and type, pre-wound for immediate installation.
Q: How do you prevent the rope from digging into lower layers during multi-layer winding?
A: This is a core expertise. We use precision winding machinery that controls traverse speed and tension. For multi-layer applications, we often recommend specific rope constructions (like compacted strand) and apply the first layer under calculated tension with a defined winding pattern to create a stable base for subsequent layers.
Q: What is the lead time for a custom winding wire rope on a drum assembly?
A: Lead times vary based on complexity and order volume. Standard configurations may ship in 2-3 weeks, while fully custom-engineered solutions may require 4-6 weeks. We provide a firm timeline upon review of your specifications.
Q: Do you offer corrosion-resistant options for harsh environments?
A: Yes. We offer a full range of solutions including galvanized wire rope, stainless steel rope, vinyl-coated ropes, and drums with specialized protective coatings (hot-dip galvanizing, marine-grade paint systems) to withstand corrosive environments like chemical plants and offshore platforms.
Q: What documentation is provided with the assembly?
A: Each shipment includes a comprehensive certification pack containing the wire rope test certificate (including MBF), material certificates for the drum, assembly drawings, and recommended installation procedures.
