Industrial-Grade Waterproof Electric Winch: Durable Power for Demanding Environments
Engineered for reliability where it matters most, our waterproof electric winch series represents the pinnacle of rugged performance and environmental resilience. Designed specifically for B2B and industrial applications, these winches deliver consistent pulling power in conditions that would compromise standard equipment. From marine operations and construction sites to mining and utility maintenance, our winches provide a critical advantage: unwavering functionality in the face of moisture, dust, and corrosion.
1. Product Overview
This heavy-duty waterproof electric winch is built to IP67 or higher ingress protection standards, ensuring complete defense against water immersion and particulate matter. It integrates a high-torque, thermally protected electric motor with a precision-engineered gear train, all housed within a robust, corrosion-resistant casing. The product is engineered for vertical pulling, horizontal dragging, and load securing applications where exposure to the elements is a constant challenge. It is the go-to solution for industries that cannot afford downtime due to equipment failure caused by environmental factors.
2. Key Features
- Superior Sealing (IP67/IP68 Rated): Advanced sealing technology protects internal components from water, dust, and debris, guaranteeing performance in rain, spray, and temporary submersion.
- Corrosion-Resistant Construction: The housing, drum, and external fittings are treated with anti-corrosion coatings or manufactured from marine-grade materials like stainless steel to withstand harsh, saline, or chemically aggressive environments.
- High-Efficiency Motor: Features a thermally protected, series-wound or permanent magnet DC motor designed for high starting torque and sustained operation under load, with efficient heat dissipation.
- Integrated Safety Systems: Includes automatic load-holding brakes, overload protection, and emergency stop functionality to ensure safe operation and prevent accidents.
- Versatile Control Options: Compatible with wired remote pendants, wireless radio remote controls, and integrated vehicle systems for flexible and safe operation from a distance.
- Low Maintenance Design: Sealed bearings and lifetime-lubricated gears minimize the need for routine servicing, reducing total cost of ownership.
3. Technical Specifications
| Parameter | Model AQ-2000 | Model AQ-5000 | Model AQ-12000 |
|---|---|---|---|
| Rated Line Pull (Single Layer) | 2,000 lbs / 907 kg | 5,000 lbs / 2,268 kg | 12,000 lbs / 5,443 kg |
| Motor Power | 1.2 kW DC | 2.5 kW DC | 5.0 kW DC |
| Voltage | 12V DC / 24V DC | 12V DC / 24V DC | 24V DC |
| Gear System | 3-Stage Planetary | 3-Stage Planetary | 4-Stage Planetary |
| IP Rating | IP67 (Standard), IP68 (Optional) | ||
| Drum Capacity (Rope) | 65 ft / 20m of 5/16" | 85 ft / 26m of 3/8" | 100 ft / 30m of 1/2" |
| Remote Control | Wired (10ft standard), Wireless (Optional) | ||
| Standard Features | Automatic brake, Overload clutch, Corrosion-resistant finish, Mounting hardware | ||
4. Application Scenarios
The robust design of this waterproof electric winch makes it indispensable across a wide range of industries:
- Marine & Shipbuilding: Deck operations, boat lifting and launching, dock-side cargo handling, and as a component in davit systems for lifeboats.
- Construction & Infrastructure: Material handling on wet job sites, positioning equipment in foundation and bridge work, and use on cranes operating in open environments.
- Utility & Telecom: Installing and tensioning cables in manholes, vaults, and other subterranean or damp locations.
- Mining & Quarrying: Equipment recovery, conveyor tensioning, and general material movement in high-moisture and dusty underground or open-pit environments.
- Agriculture & Forestry: Log skidding, equipment recovery from mud or water, and general farmstead lifting tasks exposed to weather.
- Emergency & Recovery Services: Vehicle recovery in flood conditions, water-based rescue operations, and disaster response where equipment must perform reliably in all weather.
5. Advantages
Choosing our waterproof winch technology delivers tangible operational benefits:
- Maximized Uptime: Engineered for continuous operation in adverse conditions, drastically reducing weather-related work stoppages.
- Extended Service Life: Superior protection against corrosion and contamination leads to a significantly longer operational lifespan compared to non-sealed winches.
- Enhanced Safety: Reliable performance in wet conditions prevents unexpected failures, protecting both personnel and valuable assets.
- Reduced Total Cost of Ownership: Lower maintenance requirements and greater durability translate into superior long-term value and a higher return on investment.
- Operational Flexibility: Enables project planning and execution without being constrained by environmental concerns like rain, spray, or high humidity.
6. Why Choose Us
As a specialist manufacturer in industrial pulling solutions, we offer more than just a product:
- Proven Expertise: Over two decades of focused R&D in designing and manufacturing sealed winch systems for global industrial clients.

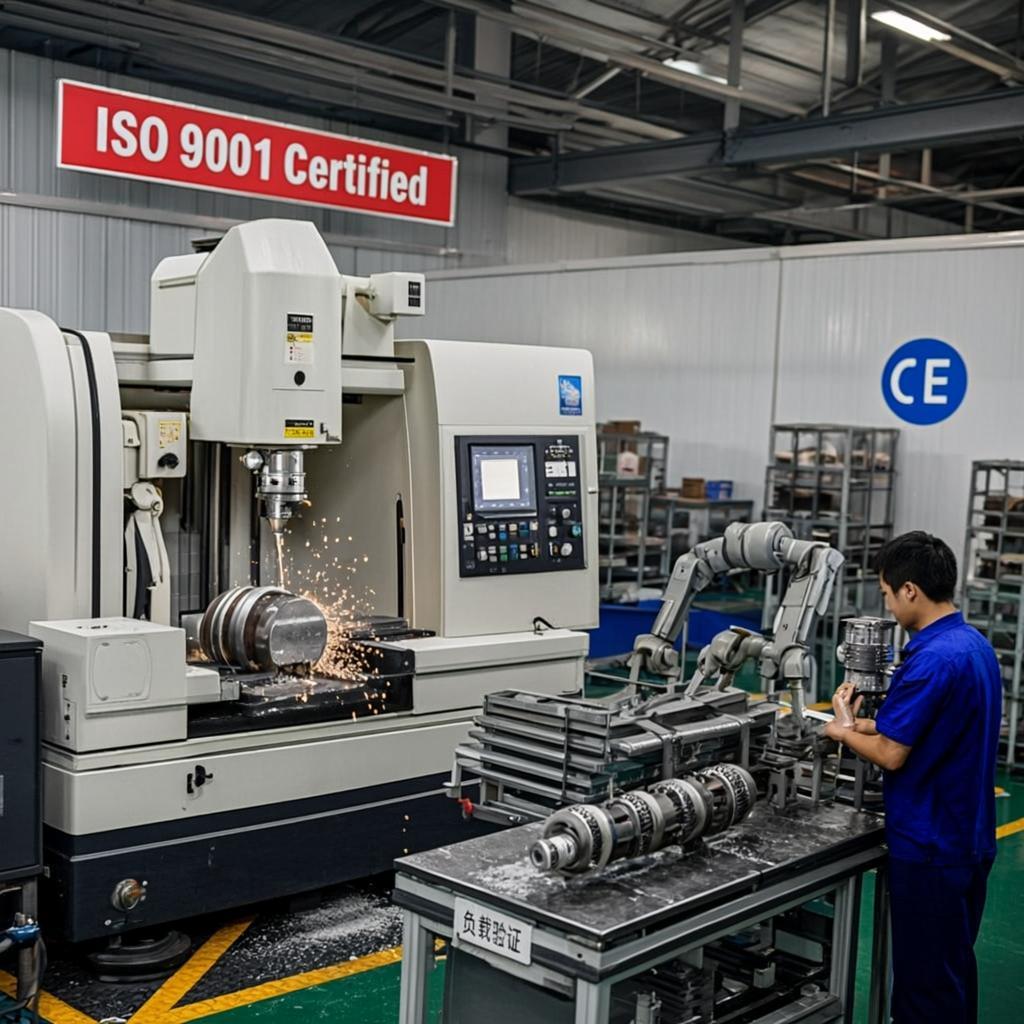

- Certified Quality: Our manufacturing processes are ISO 9001 certified, and our waterproof electric winch models undergo rigorous in-house and third-party testing to exceed stated specifications.
- Customization Capability: We offer OEM and ODM services, allowing for modifications in voltage, pulling capacity, drum configuration, and control systems to meet unique project specifications.
- Global Support Network: Backed by a comprehensive warranty and supported by a worldwide distributor network ensuring access to spare parts and technical assistance.
- Commitment to Innovation: We continuously integrate feedback from field applications to improve motor efficiency, sealing technology, and user interface design.
7. FAQ
Q1: What does the IP67 rating mean for this waterproof electric winch?
A: IP67 signifies complete protection against dust (6) and the ability to withstand temporary immersion in water up to 1 meter for 30 minutes (7). This makes the winch ideal for marine applications, frequent wash-downs, and operation in heavy rain or flooded conditions.
Q2: Can the winch be used for permanent submersion?
A: No. The IP67/IP68 rating is for temporary immersion. For permanent submersion applications, specialized configurations with pressure compensation are required. Please contact our engineering team to discuss such specific needs.
Q3: What type of maintenance does a sealed winch require?
A: Maintenance is significantly reduced. Primary tasks involve periodic visual inspection of the cable or rope, checking electrical connections for tightness, and ensuring the external housing and seals remain intact. The internal gearbox is typically factory-lubricated for life.
Q4: Are these winches compatible with synthetic rope?
A: Yes, most of our models are compatible with both steel cable and synthetic rope. We recommend specifying your preference at the time of order, as the drum design (e.g., with or without a roller fairlead) may be optimized for one type.
Q5: Do you offer different voltage options?
A: Absolutely. Our standard models are available in common DC voltages (12V, 24V). We also offer AC motor options (110V, 220V, 380V) and can develop custom voltage solutions for specific OEM integrations.
Ready to equip your operations with reliable, all-weather pulling power? Contact our technical sales team today to discuss your project requirements and receive a detailed quotation for the ideal waterproof electric winch for your needs.
