Small Hydraulic Winch: Compact Power for Demanding Industrial Applications
In the world of material handling and load management, efficiency and reliability are paramount. Our small hydraulic winch series is engineered to deliver robust performance in a compact, versatile package. Designed for integration into a wide array of mobile and stationary equipment, these winches provide a dependable hydraulic power solution where electrical systems are impractical or insufficient. Ideal for OEMs, workshops, and industrial operators, our winches are built to endure harsh conditions while offering precise control and superior safety.
Product Overview
Our small hydraulic winch is a high-torque, low-speed hydraulic motor-driven unit, crafted for continuous duty cycles in challenging environments. Unlike electric winches, it operates directly from a hydraulic power source, making it intrinsically safe for use in wet, dusty, or explosive atmospheres. The compact design allows for easy mounting in confined spaces on equipment such as service trucks, marine vessels, agricultural machinery, and forestry equipment. With a focus on durability and minimal maintenance, this winch is the go-to solution for professionals who require consistent pulling power without the limitations of battery life or electrical hazards.
Key Features
- Hydraulic Drive System: Provides smooth, variable speed control and high starting torque. The system is not affected by frequent starts/stops or stalling, ensuring long motor life.
- Compact & Robust Construction: A sealed, corrosion-resistant housing protects internal components from dirt, moisture, and impacts, guaranteeing longevity in tough industrial and marine settings.
- Integrated Braking System: Features a failsafe automatic brake that engages immediately when hydraulic pressure is released, securely holding the load without drift.
- Versatile Mounting Options: Designed with multiple mounting configurations (foot, flange, or shaft) for seamless integration into existing hydraulic circuits and machinery layouts.
- Low Maintenance Design: With fewer electrical components and sealed bearings, the winch requires significantly less upkeep compared to electric counterparts, reducing total cost of ownership.
- Precise Load Control: Offers excellent controllability for both spooling in and paying out, allowing for delicate positioning of heavy loads with minimal effort.
Technical Specifications
| Model | Rated Line Pull (kg/lbs) | Max. Line Speed (m/min) | Hydraulic Flow (L/min) | Working Pressure (Bar/PSI) | Drum Capacity (m x mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| HW-1.5T | 1,500 / 3,300 | 0-15 | 20-40 | 160 / 2,320 | 30 x 8 | 48 |
| HW-3T | 3,000 / 6,600 | 0-12 | 30-55 | 180 / 2,610 | 40 x 10 | 65 |
| HW-5T | 5,000 / 11,000 | 0-10 | 40-70 | 200 / 2,900 | 50 x 12 | 89 |
Application Scenarios
The versatility of a small hydraulic winch makes it indispensable across numerous sectors:
- Utility & Service Vehicles: Mounted on crane trucks or maintenance vans for lifting tools, pulling cables, or vehicle recovery.
- Marine & Offshore: Used on small boats, barges, and docks for anchor handling, mooring, and cargo transfer.
- Agriculture & Forestry: Integrated into tractors and skidders for log dragging, equipment positioning, and clearing operations.
- Construction: Assists in material hoisting on compact sites or within prefabrication workshops.
- Industrial Maintenance: Facilitates the movement of heavy machinery components during repair or installation in factories.
Advantages Over Electric Winches
Choosing a hydraulic solution offers distinct benefits for industrial users:
- Superior Durability: No risk of burning out from overload or continuous use. Perfect for high-duty-cycle applications.
- Enhanced Safety: No sparks, making them safe for flammable environments. The hydraulic system can be stalled indefinitely without damage. Consistent Performance: Power output is not dependent on battery charge, ensuring full power is available as long as the hydraulic system is operational.
- Environmental Resistance: Fully sealed units perform reliably in rain, snow, submersion, and extreme temperatures where electric winches would fail.
- System Integration: Easily taps into the existing hydraulic system of a host machine, eliminating the need for separate heavy-duty wiring and batteries.
Why Choose Our Small Hydraulic Winch?
We are a dedicated manufacturer with deep expertise in hydraulic drive technology. Our commitment goes beyond supply:
- OEM & Customization Focus: We work directly with equipment manufacturers to tailor winch specifications, ports, mounts, and controls for seamless integration.

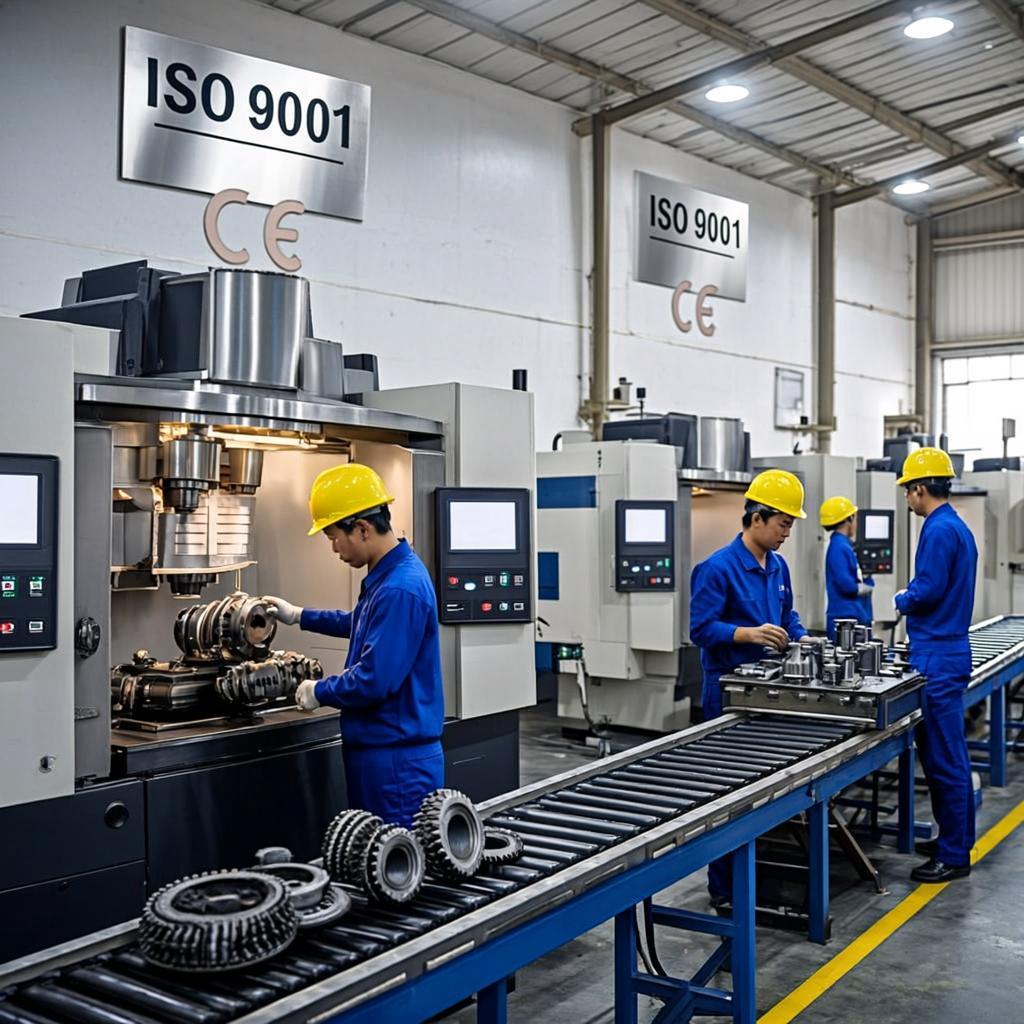

- Rigorous Quality Control: Every winch undergoes stringent pressure and performance testing before shipment, ensuring it meets our high standards for reliability.
- Global Compliance: Our products are designed and manufactured considering international standards for quality and safety.
- Technical Support: Our engineering team provides comprehensive support, from system design consultation to after-sales service and spare parts.
- Proven Track Record: Our winches are trusted by partners in construction, marine, and utility industries worldwide, a testament to their durability and performance.
Frequently Asked Questions (FAQ)
Q1: Can this small hydraulic winch be used for vertical lifting?
A: Yes, our winches are suitable for vertical lifting applications when equipped with the appropriate braking system (which is standard) and installed with correct rigging practices. Always ensure the supporting structure and mounting points are rated for the dynamic loads.
Q2: What type of hydraulic fluid and filtration is required?
A: We recommend using a good quality anti-wear hydraulic fluid (ISO VG 32 or 46 is typical). A return line filter with a rating of 10 microns or finer is crucial to protect the winch's internal components and ensure long service life.
Q3: Is speed control possible with a hydraulic winch?
A: Absolutely. The line speed is directly proportional to hydraulic flow. By using a standard directional control valve, you can achieve variable speed control. For more precise control, a proportional valve or a flow control valve can be integrated into the system.
Q4: Do you offer different gear ratios?
A: Yes. We understand that applications vary between requiring higher line pull or faster line speed. We offer a range of planetary gear ratios to optimize the winch's performance for your specific need—whether it's maximum power or quicker operation.
Q5: What is the lead time for custom OEM orders?
A: For standard models, lead time is typically 2-4 weeks. For customized small hydraulic winch units involving specific mounts, shafts, or ports, lead times range from 4-8 weeks depending on the complexity. We provide detailed project timelines upon quotation.
Contact us today to discuss how our compact and powerful hydraulic winch can enhance the capability and reliability of your equipment.
