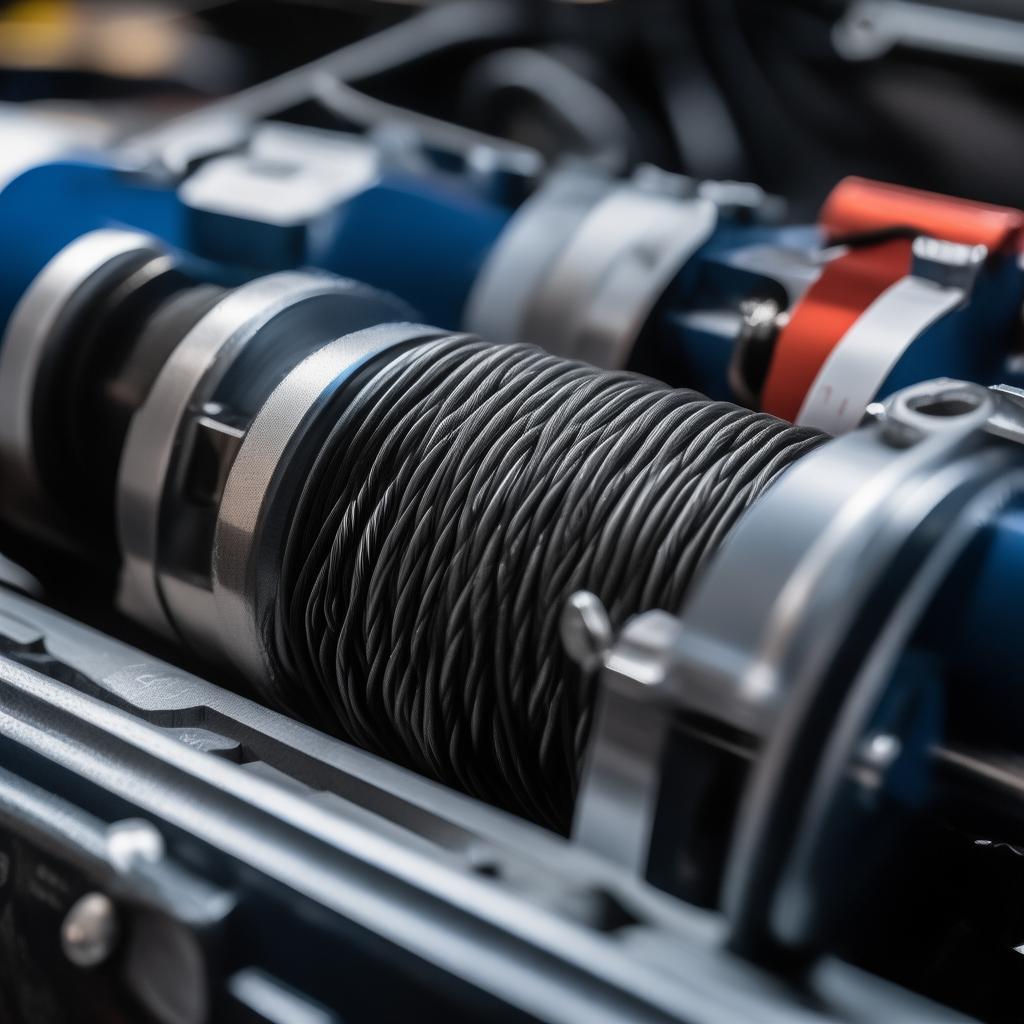

Industrial-Grade High Quality Electric Cable Winch for Heavy-Duty Lifting & Pulling
1. Product Overview
Engineered for demanding industrial environments, our high quality electric cable winch delivers reliable, consistent performance for lifting, pulling, and positioning heavy loads. This winch combines a robust AC motor with a precision-engineered drum and a durable steel cable, offering superior control and safety in applications ranging from construction sites to marine docks. Designed with maintenance-free gearboxes and thermal overload protection, this unit ensures long service life even under continuous operation. Whether you need to hoist equipment, tension cables, or move machinery, this electric winch provides the power, durability, and precision that B2B buyers demand.
2. Key Features
- High-Torque Motor: Class F insulated motor with IP55 protection rating ensures reliable operation in dusty and wet conditions.
- Durable Steel Cable: Galvanized aircraft-grade wire rope with a minimum breaking strength 5:1 safety factor.
- Automatic Braking System: Fail-safe electromagnetic brake engages instantly when power is cut, preventing load drift.
- Precision Drum Design: Spiral-grooved drum ensures even cable layering, reducing wear and extending cable life.
- Thermal Overload Protection: Built-in thermal switch automatically shuts down the motor if operating temperature exceeds safe limits.
- Low Maintenance: Sealed-for-life bearings and oil-bathed gearbox eliminate the need for routine lubrication.
- Remote Control Ready: Standard pendant control with optional wireless remote for operator safety and convenience.
3. Technical Specifications
| Parameter | Model WCH-2000 | Model WCH-5000 | Model WCH-10000 |
|---|---|---|---|
| Rated Line Pull (kg) | 2,000 | 5,000 | 10,000 |
| Rated Line Pull (lbs) | 4,409 | 11,023 | 22,046 |
| Motor Power (kW) | 3.0 | 7.5 | 15.0 |
| Power Supply | 380V/3Ph/50Hz | 380V/3Ph/50Hz | 380V/3Ph/50Hz |
| Cable Diameter (mm) | 10 | 14 | 18 |
| Cable Length (m) | 50 | 40 | 30 |
| Line Speed (m/min) | 8 | 6 | 4 |
| Brake Type | Electromagnetic | Electromagnetic | Electromagnetic |
| Weight (kg) | 180 | 420 | 850 |
| Protection Class | IP55 | IP55 | IP55 |
4. Application Scenarios
This high quality electric cable winch is designed for versatility across multiple industries:
- Construction & Civil Engineering: Hoisting steel beams, concrete forms, and scaffolding materials at building sites.
- Warehousing & Logistics: Pulling heavy pallets onto loading docks or positioning containers in storage yards.
- Marine & Offshore: Mooring vessels, launching small boats, or retrieving fishing nets and traps.
- Mining & Quarrying: Dragging ore carts, pulling conveyor belt sections, or tensioning cableways.
- Oil & Gas: Lifting valves, flanges, and equipment in refineries and drilling platforms.
- Entertainment & Events: Rigging stage equipment, lighting trusses, and large backdrop screens.
5. Advantages
- Safety First: Double-brake system (mechanical + electromagnetic) meets OSHA and CE standards for load holding.
- Energy Efficient: High-efficiency motor design reduces power consumption by up to 15% compared to conventional winches.
- Extended Cable Life: The spiral-grooved drum minimizes pinching and abrasion, allowing the cable to last 30% longer.
- Easy Installation: Pre-wired control box with plug-and-play connectors reduces setup time by 40%.
- Global Compliance: CE, UL, and ISO 9001 certified for international shipping and use.
- Customizable: Available with different drum sizes, cable lengths, and mounting configurations (base plate, cross-mount, or swivel).
6. Why Choose Us
Since 2005, we have been a leading manufacturer of industrial lifting equipment, exporting to over 60 countries. Our high quality electric cable winch line is backed by:
- In-House Engineering: Every winch is designed and tested in our ISO 17025-accredited lab.
- Rigorous Quality Control: 100% load testing and 48-hour burn-in test before shipment.
- Global Support Network: 24/7 technical support with spare parts warehouses in Europe, Asia, and North America.
- Competitive Lead Times: Standard models ship within 15 working days; custom orders within 30 days.
- Warranty: 2-year comprehensive warranty covering motor, gearbox, and electrical components.
7. FAQ
Q: What is the duty cycle of this electric winch?
A: Our standard models are rated for S3-40% duty cycle (4 minutes on, 6 minutes off). For continuous operation (S1 duty), please contact our sales team for a customized solution.
Q: Can this winch be used outdoors in rain?
A: Yes, the IP55 protection rating allows operation in rain and dusty conditions. However, we recommend storing the control pendant in a dry place when not in use.
Q: What type of cable is included?
A: All winches come with galvanized steel wire rope (6x36+IWRC construction) with a pre-attached hook and safety latch. For corrosive environments, stainless steel cable is available as an option.
Q: Do you provide installation manuals?
A: Yes, every winch ships with a detailed installation guide, wiring diagram, and maintenance schedule. We also offer on-site installation training for bulk orders.
Q: How do I select the correct model for my application?
A: Consider the maximum load weight, required lift height, and operating frequency. As a rule of thumb, choose a winch with a rated capacity at least 25% higher than your heaviest load. Our technical team can help you calculate the exact specifications.
Q: Is the remote control included?
A: A 2-button pendant control (up/down) with 5m cable is standard. Wireless remote control with 100m range is available as an optional accessory.
Q: What is the expected lifespan of this winch?
A> With proper maintenance (annual inspection and gear oil change every 2,000 hours), the winch typically operates for 10-15 years in normal industrial conditions.
Contact our B2B sales team today for volume pricing, custom specifications, and free engineering consultation on your next high quality electric cable winch project.
