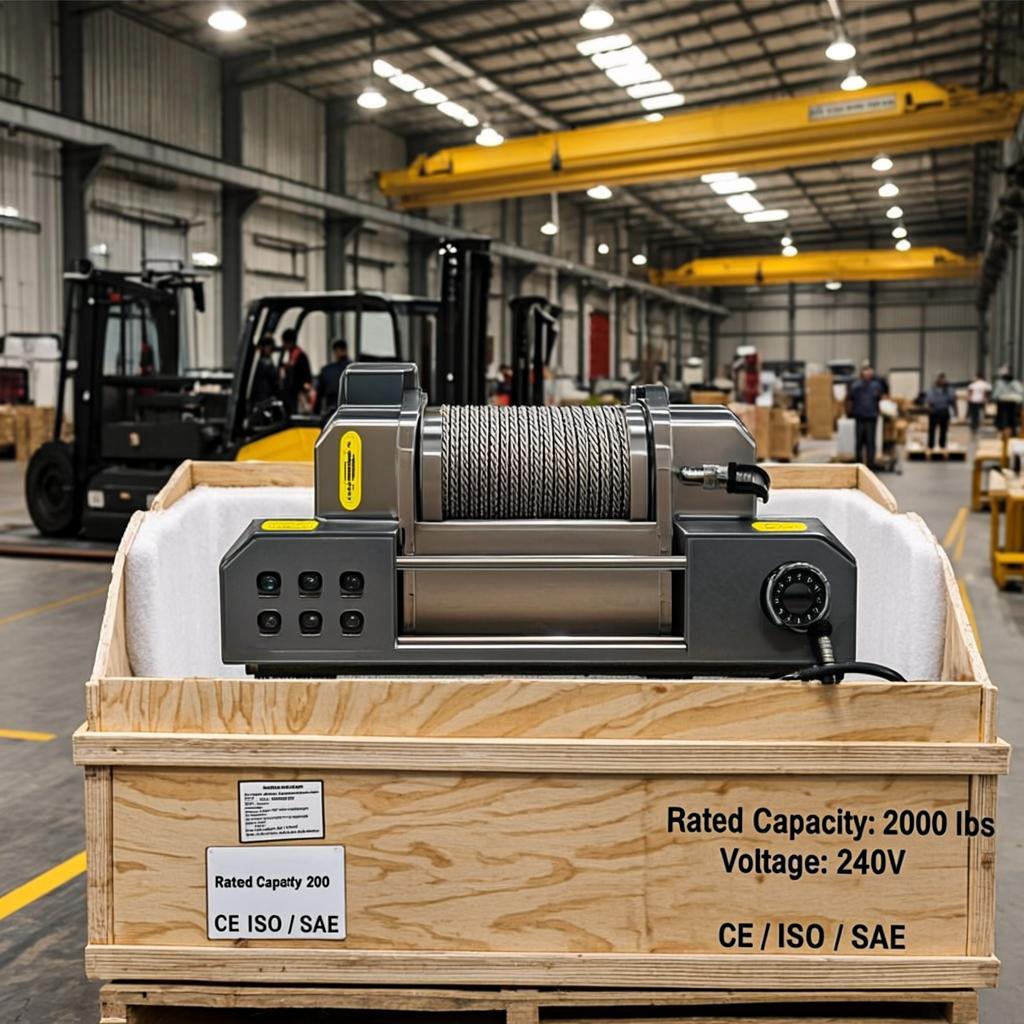

Heavy-Duty Electric Pulling Winch 240V for Industrial and Commercial Applications
Engineered for demanding environments, our electric pulling winch 240V is a robust and reliable solution for material handling, positioning, and load pulling tasks. Designed to operate on standard industrial single-phase power, this winch eliminates the need for complex hydraulic systems or air supply, offering a clean, efficient, and powerful alternative. Ideal for workshops, construction sites, warehouses, and agricultural settings, it delivers consistent performance where durability and safety are paramount.
Product Overview
This industrial-grade electric pulling winch 240V is built to provide superior pulling force with precise control. It features a high-torque electric motor coupled with a reliable gear reduction system, ensuring smooth operation under heavy loads. The unit comes complete with a remote control for safe, operator-directed use from a distance, enhancing workplace safety protocols. With a focus on durability, the winch is constructed with a hardened steel drum, corrosion-resistant coatings, and sealed components to withstand harsh conditions, making it a versatile and long-lasting asset for any operation requiring controlled horizontal or inclined pulling.
Key Features
- Standard 240V AC Operation: Plugs directly into common industrial single-phase power outlets, ensuring easy installation and wide compatibility without special infrastructure.
- High-Efficiency Geared Motor: Provides high torque at low speeds for powerful and controlled pulling, with thermal overload protection to prevent motor burnout.
- Remote Control Operation: Includes a pendant-style remote with forward, reverse, and emergency stop functions, allowing for safe and precise control away from the load path.
- Robust Construction: Features a heavy-duty steel frame, galvanized or powder-coated finishes for corrosion resistance, and a durable steel wire rope with a safety hook.
- Integrated Safety Brake: An automatic load-holding brake engages immediately when power is cut, securing the load and preventing accidental unspooling.
- Versatile Mounting Options: Designed with multiple mounting points for flexible installation on trailers, workbenches, beams, or custom rigging.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 240V AC, 50/60Hz (Single Phase) |
| Rated Pulling Capacity | 2,000 lbs / 907 kg (Standard Model)* |
| Motor Power | 1.5 HP / 1.1 kW |
| Gear Type | 3-Stage Planetary Reduction |
| Rope Capacity | 65 ft / 20 m of 5/16" Steel Wire Rope |
| Line Speed (No Load) | Approx. 15 ft/min / 4.5 m/min |
| Control Method | Water-Resistant Pendant Remote Control (Included) |
| Safety Features | Automatic Load-Holding Brake, Thermal Overload Protection |
| Mounting | 4-Bolt Base Plate with Reinforced Brackets |
| IP Rating | IP54 (Dust and Water Splash Resistant) |
*Note: Other capacity models (e.g., 1500lb, 3000lb, 5000lb) are available upon inquiry.
Application Scenarios
The versatility of a 240V electric pulling winch makes it indispensable across numerous sectors. In construction and landscaping, it is perfect for positioning heavy machinery, pulling timber, or tensioning cables. Manufacturing and warehouse facilities utilize it for moving equipment on shop floors, loading machinery onto platforms, or retracting conveyor lines. For automotive and repair shops, it serves as an essential tool for vehicle recovery, pulling engines, or straightening frames. In agricultural settings, farmers rely on it for dragging fallen trees, positioning heavy feeders, or assisting with equipment maintenance. Its simple power requirements and robust design make it a go-to tool for any task requiring reliable, controlled linear force.
Advantages
- Operational Efficiency: Electric power provides instant torque and consistent performance without the maintenance demands of hydraulic systems or the noise of gas engines.
- Enhanced Safety: Remote operation keeps personnel clear of dangerous load zones. The fail-safe brake and overload protection are critical for preventing accidents.
- Cost-Effective: Lower initial investment and minimal maintenance compared to hydraulic winches. Runs on standard electricity, avoiding fuel costs.
- Low Maintenance: Sealed gears and permanently lubricated bearings require only periodic inspection and basic care, reducing downtime.
- Clean & Quiet: Produces zero emissions on-site and operates with significantly less noise, making it suitable for indoor and environmentally sensitive areas.
Why Choose Our Electric Pulling Winch?
Selecting our electric pulling winch 240V means investing in quality, reliability, and expert support. We specialize in industrial-grade equipment designed for real-world challenges. Our winches undergo rigorous testing to ensure they meet strict performance and safety standards before shipment. We offer comprehensive technical documentation, responsive customer service, and readily available spare parts to support your operations globally. Furthermore, we provide customization options, including different cable lengths, hook types, and control variants, to ensure the product fits your specific application perfectly. As a trusted supplier on international B2B platforms, we are committed to building long-term partnerships by delivering exceptional value and dependable performance.
Frequently Asked Questions (FAQ)
Q1: Can this 240V winch be used for vertical lifting?
A: This winch is designed and rated for pulling and positioning loads. It is not certified as a overhead hoist for vertical lifting where personnel or critical loads are suspended. Always use equipment specifically designed and rated for lifting applications.
Q2: What is the power requirement, and do I need a special outlet?
A: The winch operates on standard 240V AC, single-phase power, which is commonly available in industrial and workshop settings worldwide. It typically plugs into a dedicated outlet with the appropriate amperage rating as specified in the manual. No special phase converters are needed.
Q3: How do I maintain the electric pulling winch?
A: Maintenance is minimal. Regularly inspect the wire rope for signs of wear, kinks, or broken strands. Keep the unit clean from debris. Check mounting bolts for tightness. The gearbox is permanently lubricated. Refer to the user manual for a detailed maintenance schedule.
Q4: Is the remote control waterproof?
A: The included pendant remote is water-resistant (IP54 rating), meaning it can withstand water splashes and dust. It is not designed for submersion. For extremely wet conditions, inquire about upgraded control options.
Q5: Do you offer different cable lengths or capacities?
A: Yes. While we offer a standard configuration, we can provide custom cable lengths and various pulling capacities (from 1500 lbs to over 5000 lbs) to suit your project requirements. Please contact our sales team with your specific needs.
