50 ton hydraulic winch

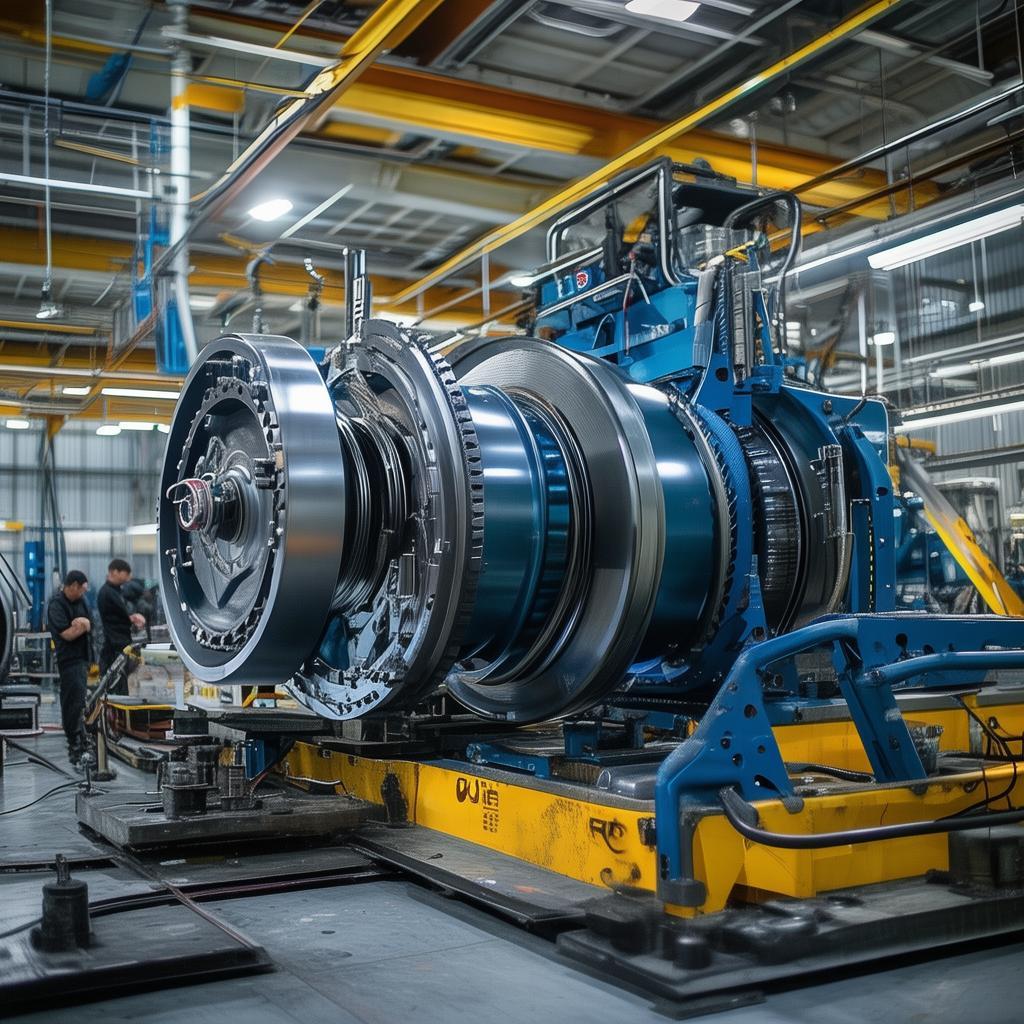

50 Ton Hydraulic Winch – Heavy-Duty Lifting & Pulling Solutions for Industrial Applications
1. Product Overview
Designed for the most demanding industrial environments, the 50 ton hydraulic winch represents the pinnacle of heavy-duty pulling and lifting technology. Engineered for continuous operation under extreme loads, this winch system delivers reliable, controlled force for applications ranging from offshore mooring to mining extraction. Unlike electric winches, the hydraulic configuration provides superior torque density, inherent overload protection, and the ability to operate in hazardous or wet conditions without electrical spark risks. This model is built to ANSI/ASME B30.7 standards and is fully customizable for OEM integration or retrofitting onto existing heavy machinery.
2. Key Features
- High Line Pull Capacity: Rated at 50 tons (100,000 lbs) on the first layer, with a safety factor of 5:1 on all structural components.
- Dual-Stage Planetary Gear System: Provides smooth, high-torque output with automatic braking. The fail-safe, spring-applied, hydraulic-release brake ensures load holding even during power loss.
- Corrosion-Resistant Construction: Drum and frame are fabricated from high-tensile steel with a two-part epoxy coating, suitable for marine and offshore environments.
- Variable Speed Control: Infinitely variable line speeds from 0 to 12 m/min via a proportional hydraulic control valve, allowing precise inching for delicate positioning.
- Automatic Level Wind System: Integrated roller-guided level wind prevents cable crossover, extending wire rope life and ensuring consistent spooling.
- Compact Footprint: Despite its capacity, the winch features a space-saving design with a low center of gravity for stable mounting on trailers or skids.
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Line Pull (1st Layer) | 50 ton (100,000 lbf) |
| Line Speed (Full Load) | 0 – 12 m/min (variable) |
| Wire Rope Diameter | 32 mm (1.25") – 38 mm (1.5") |
| Drum Capacity | 200 m of 32 mm rope |
| Hydraulic Flow Rate | 180 – 220 L/min |
| Operating Pressure | 280 – 320 bar (4,000 – 4,600 psi) |
| Brake Type | Spring-applied, hydraulic-release (fail-safe) |
| Motor Type | Radial piston hydraulic motor |
| Weight (approx.) | 4,500 kg (9,920 lbs) |
| Compliance | ANSI/ASME B30.7, CE, ISO 9001 |
4. Application Scenarios
The 50 ton hydraulic winch is purpose-built for sectors where electric systems are impractical or unsafe:
- Offshore & Marine: Anchor handling, mooring line tensioning, and subsea equipment deployment on vessels or oil rigs.
- Mining & Quarrying: Hauling heavy ore carts up inclined rails, dragging crusher feed, or pulling stuck equipment.
- Construction & Civil Engineering: Bridge launching, tower erection, and pulling precast concrete segments into position.
- Oil & Gas (Onshore): Pipe pulling during horizontal directional drilling (HDD) and heavy valve actuation.
- Forestry & Logging: Skidding massive logs in challenging terrain where diesel hydraulic power is preferred.
5. Advantages
- Superior Torque at Low RPM: Hydraulic motors deliver maximum torque instantly, unlike electric motors that require gear reduction.
- Inherent Overload Protection: Hydraulic relief valves prevent system damage if the winch is overloaded, eliminating shear pin replacements.
- Submersible Operation: The sealed hydraulic system can operate fully submerged in saltwater without electrical short-circuit risks.
- Low Maintenance: Fewer moving parts than electric winches. No brushes, no contactors, and no complex electrical panels to fail.
- Remote Control Flexibility: Can be operated via pendant, radio remote, or integrated into a PLC system for automated pulling cycles.
6. Why Choose Us
With over 20 years of experience manufacturing heavy hydraulic equipment, our 50 ton hydraulic winch stands apart due to rigorous quality assurance and global service support. Every winch undergoes full-load testing with hydrostatic pressure checks before shipment. We offer:
- Custom Engineering: We can modify drum dimensions, mounting brackets, and control systems to match your specific machinery.
- Global Logistics: We ship to over 40 countries with proper export documentation and crating for sea freight.
- 24/7 Technical Support: Our engineers are available for remote troubleshooting and on-site commissioning assistance.
- Spare Parts Availability: We maintain a stock of brake assemblies, seals, and hydraulic motors for fast replacement.
7. FAQ
Q: What hydraulic power unit (HPU) is required for this winch?
A: The winch requires a hydraulic power unit delivering 180–220 L/min at 280–320 bar. We can supply a matching HPU with a diesel or electric prime mover upon request.
Q: Can this winch be used for vertical lifting of personnel?
A: No. This winch is rated for material handling and pulling only. It is not certified for man-riding applications. For personnel lifting, please consult our dedicated hoist product line.
Q: What is the expected lifespan of the wire rope with this winch?
A: With proper lubrication and the automatic level wind system, the 32 mm wire rope typically lasts 12–18 months under continuous heavy use. We recommend monthly inspection per OSHA guidelines.
Q: Can the winch be mounted on a mobile truck chassis?
A: Yes. The compact design and low center of gravity allow for truck or trailer mounting. We provide a subframe with bolt-hole patterns for common chassis dimensions.
Q: Do you offer a remote control with a 100-meter range?
A: Yes. Our standard radio remote control has a 100 m line-of-sight range. For longer distances, we offer a repeater-based system that extends range up to 500 m.
