12 Volt Hydraulic Winch: The Ultimate Power Solution for Heavy-Duty Off-Road & Industrial Recovery
In demanding environments where reliability is non-negotiable, a standard electric winch can fall short. Introducing our heavy-duty 12 volt hydraulic winch, engineered to deliver unmatched, sustained pulling power for the most challenging recovery, lifting, and positioning tasks. Designed for integration with existing vehicle hydraulic systems (PTO), this winch is the preferred choice for professionals in off-road recovery, forestry, agriculture, and construction who require a tool that won't overheat or drain the primary battery. This product page details why our hydraulic winch system is the superior investment for continuous, high-torque operation.
Product Overview

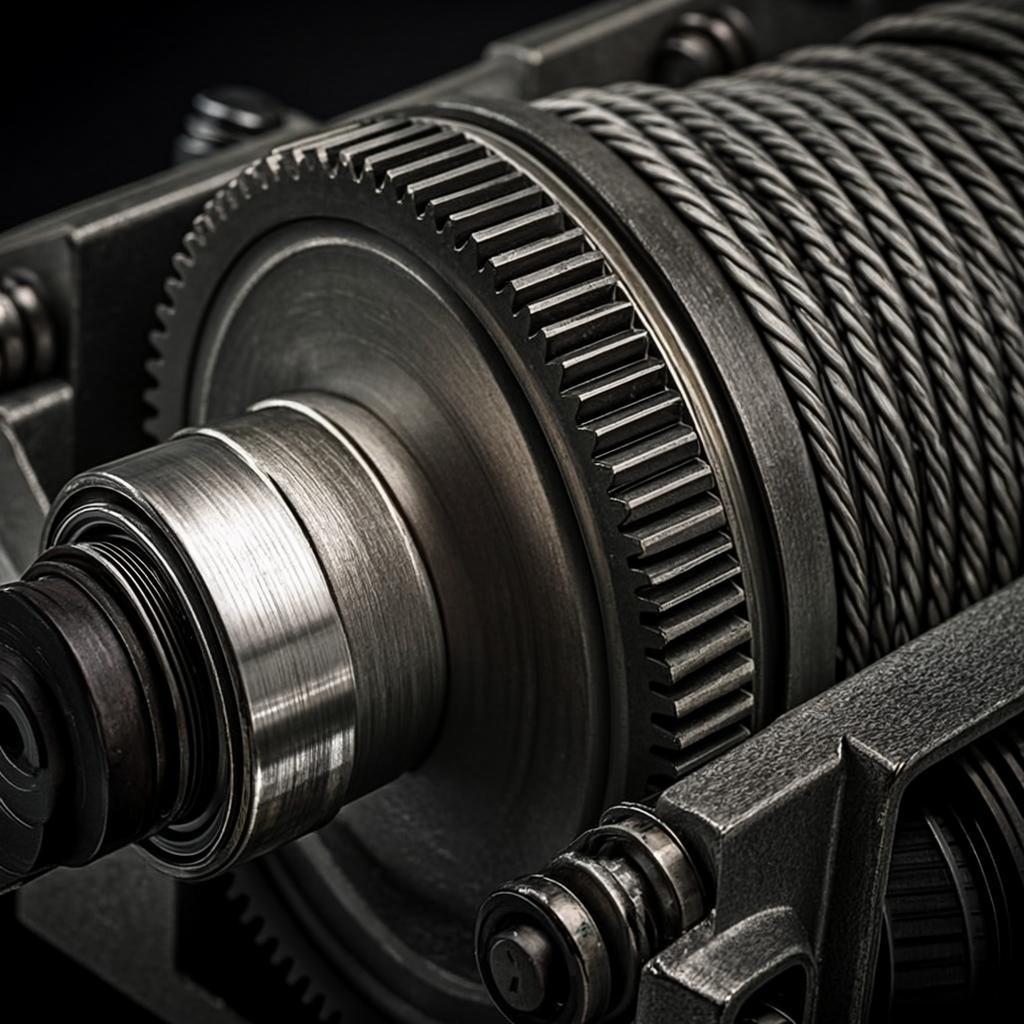

Our 12 volt hydraulic winch is a robust power conversion unit that utilizes the vehicle's hydraulic system to generate immense, consistent pulling force. Unlike its electric counterparts, it operates independently of the vehicle's electrical system, drawing power from the engine via a hydraulic pump. This design is inherently safer for prolonged use, eliminating the risk of motor burnout or battery depletion during critical operations. The winch features a high-strength drum, a reliable planetary gear system, and a durable solenoid valve controlled by a convenient 12-volt remote, offering precise operation. It is the definitive solution for applications requiring relentless performance under extreme conditions.
Key Features
- Hydraulic-Powered Reliability: Provides continuous pulling power without overheating, ideal for repeated or long-duration pulls. Performance is consistent regardless of winch temperature.
- Minimal Electrical Draw: The integrated 12 volt system only powers the control solenoid, placing almost zero load on the vehicle's battery and alternator, preserving electrical system integrity.
- High Torque & Low Speed: Delivers exceptional line pull at controlled speeds, offering superior precision and control for delicate recovery or precise load positioning.
- Sealed & Corrosion-Resistant Construction: Built with marine-grade components and robust sealing to withstand harsh environments, including mud, water, and corrosive materials.
- Versatile Remote Control: Operate the winch safely from a distance with a waterproof, handheld 12 volt remote, allowing for optimal positioning and safety during recovery operations.
- Universal Mounting Design: Engineered for straightforward installation on a wide range of vehicles, including trucks, SUVs, tractors, and specialized industrial equipment with a standard hydraulic system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HW-12V-9500 |
| Rated Line Pull | 9,500 lbs (4,309 kg) / Single Line |
| Power Source | Vehicle Hydraulic System (PTO) |
| Control System | 12 Volt DC Solenoid Valve |
| Gear System | 3-Stage Planetary Gear |
| Drum Capacity | 100 ft (30.5m) of 3/8" (9.5mm) Wire Rope |
| Max Hydraulic Pressure | 2500 PSI (172 Bar) |
| Recommended Oil Flow | 4-8 GPM (15-30 LPM) |
| Mounting Pattern | Standard 10" x 4.5" (254mm x 114mm) |
| Net Weight | 98 lbs (44.5 kg) |
Application Scenarios
The versatility and endurance of a 12 volt hydraulic winch make it indispensable across numerous sectors:
- Professional Off-Road Recovery: Essential for recovery vehicles and serious off-roaders who face deep mud, steep inclines, and situations requiring multiple, consecutive pulls.
- Agriculture & Forestry: Used for log skidding, clearing land, pulling heavy equipment, and retrieving stuck machinery in remote, rugged terrain.
- Construction & Infrastructure: Ideal for positioning heavy materials, tensioning lines, and recovering construction vehicles from site obstacles.
- Marine & Dockyard: Suitable for boat trailer retrieval, dock-side positioning of vessels, and other applications where a sealed, corrosion-resistant winch is required.
- Utility & Municipal Services: Deployed on service trucks for pole setting, cable pulling, and vehicle recovery during storm response and maintenance operations.
Advantages Over Electric Winches
Choosing a hydraulic system presents clear benefits for heavy-duty users:
- Unmatched Duty Cycle: Can run continuously without overheating, while electric winches require strict duty cycles to prevent motor damage.
- Consistent Power Output: Pulling power does not diminish as the battery drains; performance is stable as long as the engine runs.
- Enhanced Safety: No high-current electrical cables, reducing fire risk. The hydraulic motor is also spark-free, a critical feature in volatile environments.
- Longer Service Life: With fewer electrical components prone to heat failure and a simpler, robust mechanical design, hydraulic winches typically offer greater longevity under constant use.
Why Choose Our 12 Volt Hydraulic Winch?
We are a leading manufacturer specializing in robust recovery and lifting equipment. Our 12 volt hydraulic winch is the product of extensive field testing and engineering refinement.
- OEM & ODM Expertise: We offer comprehensive customization, including branding, load capacity adjustments, and specific mounting solutions to meet your vehicle or product line requirements.
- Rigorous Quality Control: Every winch undergoes stringent pressure and performance testing to ensure it meets our high standards for durability and reliability before shipment.
- Global Compliance: Our products are designed and manufactured to meet international safety and quality standards, ensuring smooth import and customer confidence worldwide.
- Professional Support: From selection and installation guidance to after-sales service, our technical team provides expert support to ensure optimal performance of your winch system.
- Competitive Pricing: By controlling the manufacturing process from foundry to assembly, we deliver exceptional value without compromising on component quality or build integrity.
Frequently Asked Questions (FAQ)
Q1: Can I install this 12 volt hydraulic winch on a vehicle without an existing hydraulic system?
A: No. This winch requires a source of hydraulic power, typically a Power Take-Off (PTO) pump driven by the vehicle's engine or a dedicated hydraulic system. It is not a standalone unit like an electric winch.
Q2: How does the 12-volt part work if it's hydraulic?
A: The 12 volt aspect refers solely to the control circuit. A small, low-amperage 12V solenoid valve directs hydraulic fluid to drive the winch motor. This uses minimal battery power compared to the hundreds of amps an electric winch motor draws.
Q3: Is a hydraulic winch slower than an electric winch?
A: Generally, yes. Hydraulic winches prioritize high torque and controlled power over speed. The line speed is dependent on your hydraulic system's flow rate (GPM). For precise, powerful pulls, this is an advantage, not a drawback.
Q4: What do I need to check on my vehicle before purchasing?
A: Confirm your vehicle has a compatible hydraulic system (PTO) with sufficient pressure (PSI) and oil flow (GPM) to match the winch's requirements (see Technical Specifications). Also, verify you have adequate space for mounting.
Q5: Do you offer different cable or rope options?
A: Yes. We can typically supply the winch with standard wire rope, synthetic rope, or with no rope at all, depending on your preference and intended application. Contact our sales team for specific options.
Ready to equip your fleet with relentless pulling power? Contact our sales engineering team today for a quote, technical consultation, or to discuss customizing a 12 volt hydraulic winch solution for your specific operational needs.
