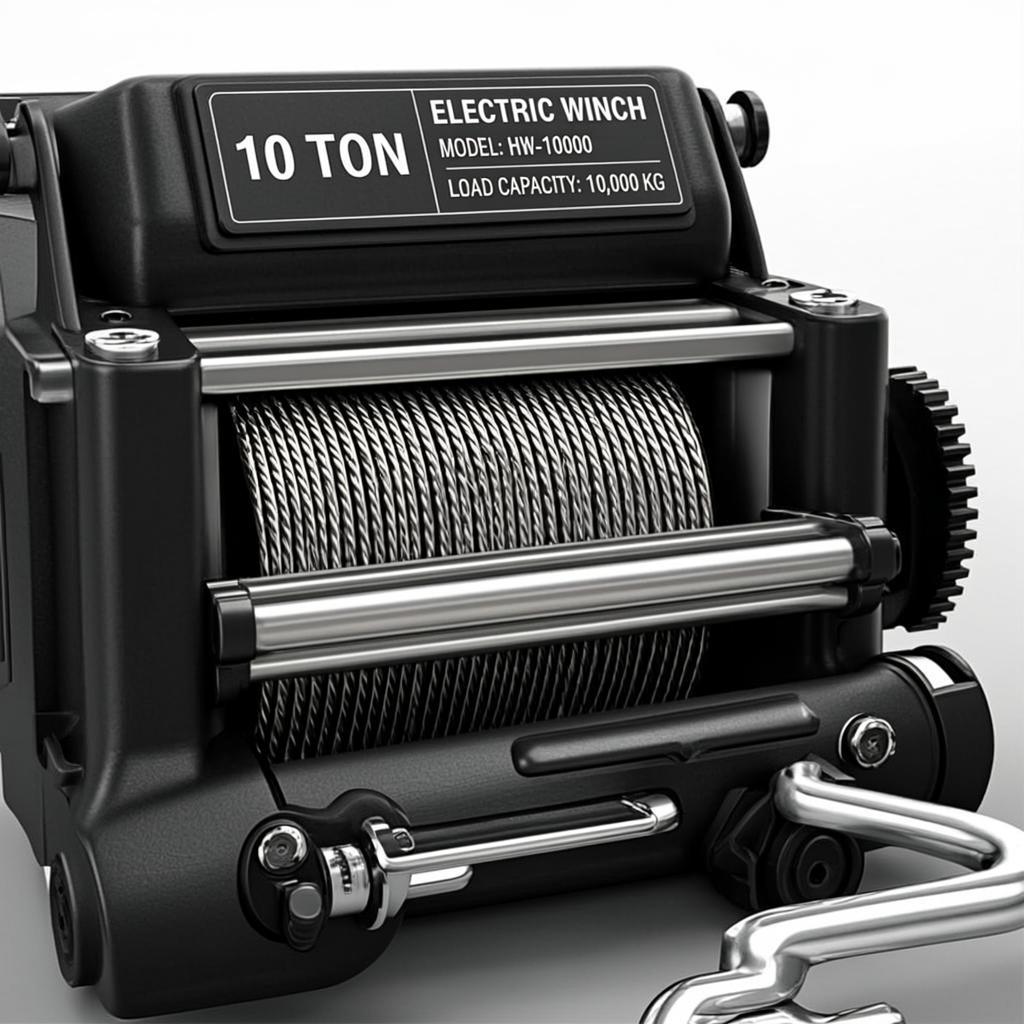

10 Ton Electric Winch: Heavy-Duty Lifting & Pulling Solution
In demanding industrial, construction, and marine environments, reliable and powerful lifting equipment is non-negotiable. Our 10 ton electric winch is engineered to meet these rigorous demands, offering a robust, efficient, and safe solution for vertical hoisting and horizontal pulling applications. Designed with durability and operator safety as core principles, this winch provides the consistent performance required to keep your projects on schedule and within budget. It represents an ideal investment for businesses seeking to enhance their material handling capabilities with a dependable electric-powered workhorse.
Product Overview
This industrial-grade 10 ton electric winch is a powerhouse designed for precision and endurance. It features a high-torque, thermally protected electric motor paired with a multi-stage planetary gear system, delivering smooth and controlled power transmission. The winch is built around a high-strength steel frame and drum, ensuring longevity under heavy loads and in challenging conditions. Equipped with an advanced electromagnetic brake system, it guarantees secure load holding. Whether integrated into a crane system, mounted on a trailer, or used in a stationary setup, this winch is a versatile cornerstone for any heavy-lifting operation requiring a 10-ton capacity.
Key Features
- High-Efficiency Electric Motor: A powerful, continuous-duty motor ensures reliable operation with overload protection, suitable for prolonged use in various voltage configurations.
- Planetary Gear Reduction System: Provides high torque output, smooth operation, and compact design for efficient power transmission and reduced maintenance.
- Automatic Safety Brake: A fail-safe, spring-applied, electrically released brake engages automatically when power is cut, preventing accidental load descent.
- Durable Construction: The drum, gearbox housing, and base are constructed from reinforced steel, offering exceptional resistance to deformation and wear.
- Weather-Resistant Design: Critical components are sealed and treated to withstand dust, moisture, and harsh outdoor environments (specific IP rating may vary by model).
- User-Friendly Control: Compatible with pendant push-button stations or radio remote controls for precise and safe operation from a distance.
- Versatile Mounting Options: Designed with standardized bolt patterns for flexible installation on decks, platforms, or within custom machinery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 10 Tons (20,000 lbs / 9,072 kg) |
| Power Source | Electric (Common: 3-Phase 380V/415V 50Hz or 460V 60Hz; Single-phase options available) |
| Motor Power | Typically 15-18.5 kW (approx. 20-25 HP) |
| Gear System | Multi-stage planetary gears, oil-bath lubricated |
| Brake System | Automatic fail-safe electromagnetic disc brake |
| Drum Capacity | Approx. 200-300 meters of wire rope (diameter dependent) |
| Wire Rope Diameter | Recommend 18-20 mm |
| Average Line Speed (No Load) | Approximately 5-8 meters per minute |
| Mounting | Base-mounted with standardized bolt holes |
| Net Weight | Approximately 450-600 kg (model dependent) |
Application Scenarios
The versatility of a 10 ton electric winch makes it indispensable across numerous sectors. In construction and infrastructure, it is used for lifting steel beams, concrete panels, and heavy machinery on-site. Manufacturing and warehouse facilities utilize it for positioning heavy equipment and handling large materials. Within the marine and shipbuilding industry, it serves for boat hauling, dockyard operations, and ship loading. The utility and energy sector relies on it for installing transformers, pulling cables, and maintenance work. Additionally, it is perfect for recovery operations, stage and event rigging, and as a core component in custom gantry crane and hoist systems.
Advantages
- Operational Consistency: Electric power provides steady, controllable speed and torque, unlike fluctuating hydraulic or pneumatic systems.
- Lower Operational Costs: Higher energy efficiency and reduced need for hydraulic fluids lead to significant long-term savings.
- Enhanced Safety: Integrated safety brakes, overload protection, and the ability for remote operation minimize risks to personnel.
- Reduced Noise and Emissions: Ideal for indoor use or environmentally sensitive sites, producing minimal noise and zero on-site emissions.
- Low Maintenance: The sealed gearbox and simple electric motor design require less routine maintenance compared to internal combustion-driven winches.
- Easy Integration: Simple electrical connection facilitates integration into existing power systems and automated controls.
Why Choose Our 10 Ton Electric Winch?
Selecting the right heavy-duty equipment partner is critical. We are a specialized manufacturer with deep expertise in industrial hoisting solutions. Our 10 ton electric winch is not an off-the-shelf commodity; it is the product of rigorous engineering, quality-controlled manufacturing, and real-world testing. We use premium-grade materials and components from trusted suppliers to ensure every unit meets international safety and performance standards. Beyond the product, we offer comprehensive technical support, detailed documentation, and flexible customization options to tailor the winch to your specific application. Our global logistics network ensures timely delivery and we stand behind our products with a clear and responsive warranty and after-sales service. When you choose our winch, you are investing in reliability, productivity, and a long-term partnership.
Frequently Asked Questions (FAQ)
Q1: What power supply is required for this 10 ton electric winch?
A: Our standard models are typically configured for 3-phase AC power, such as 380V/50Hz or 460V/60Hz. We also offer models for other voltages, including single-phase, upon request. Please specify your local power specifications when inquiring.
Q2: Can the winch be used for both lifting and horizontal pulling?
A: Yes, this winch is designed for both vertical lifting and horizontal pulling applications. However, the mounting structure and wire rope reeving must be appropriately configured for the specific duty to ensure safety and stability.
Q3: Is the wire rope included with the winch?
A: The winch is typically supplied with a bare drum. We can provide certified wire rope as an optional accessory, cut to your specified length and with the appropriate end fittings (e.g., hook, shackle).
Q4: What safety features are included?
A: Standard safety features include an automatic fail-safe brake, motor thermal overload protection, and a limit switch (optional or standard depending on model) to prevent over-winding. Always follow local regulations, which may require additional safety devices.
Q5: What is the lead time for an order?
A: For standard configuration models, the lead time is generally between 15-30 days after order confirmation. Customized orders may require additional time. We provide accurate timelines during the quotation process.
Q6: Do you provide installation guidance and manuals?
A: Absolutely. Each 10 ton electric winch is shipped with a comprehensive digital and/or physical manual containing detailed installation instructions, wiring diagrams, maintenance schedules, and safety guidelines.
